Bridge Point I-5 Seattle
Project Description
The completion of Bridge Point I-5's Building 1 marks both Sierra and Bridge's largest Seattle area at the time of completion.

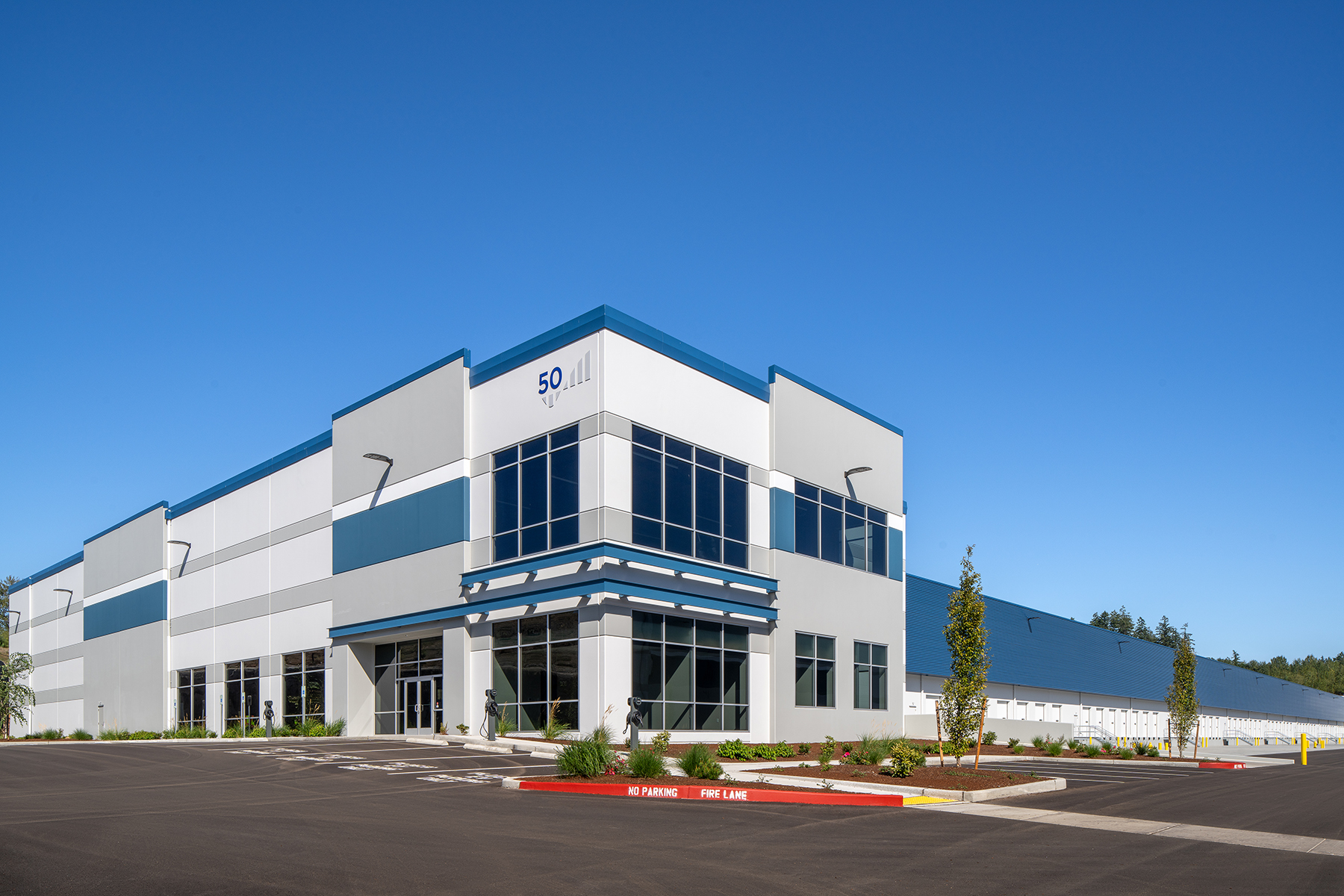

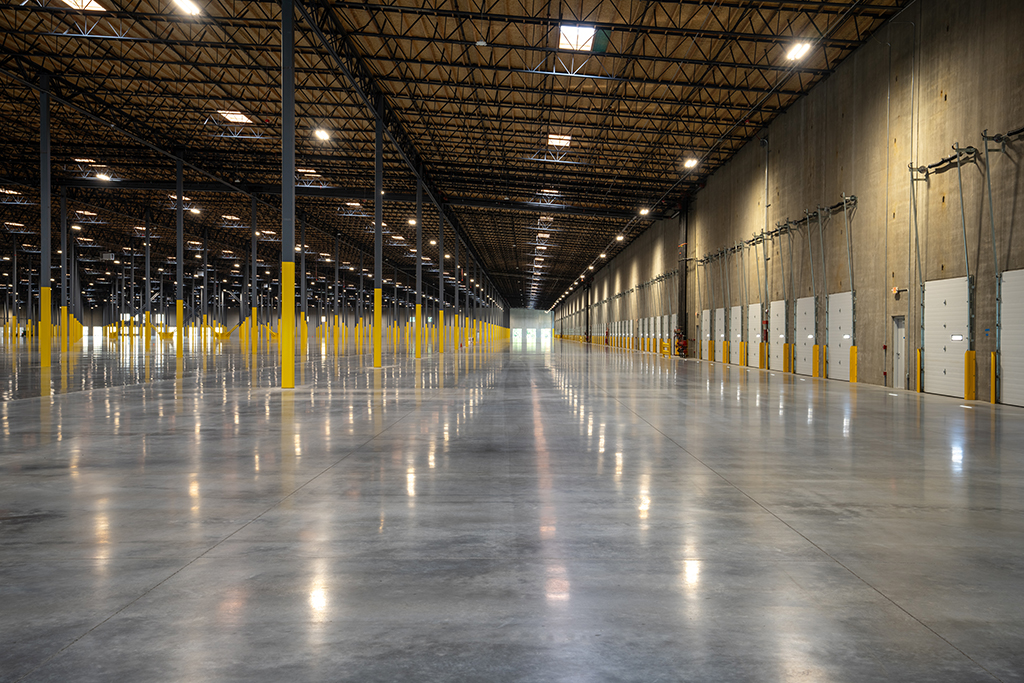

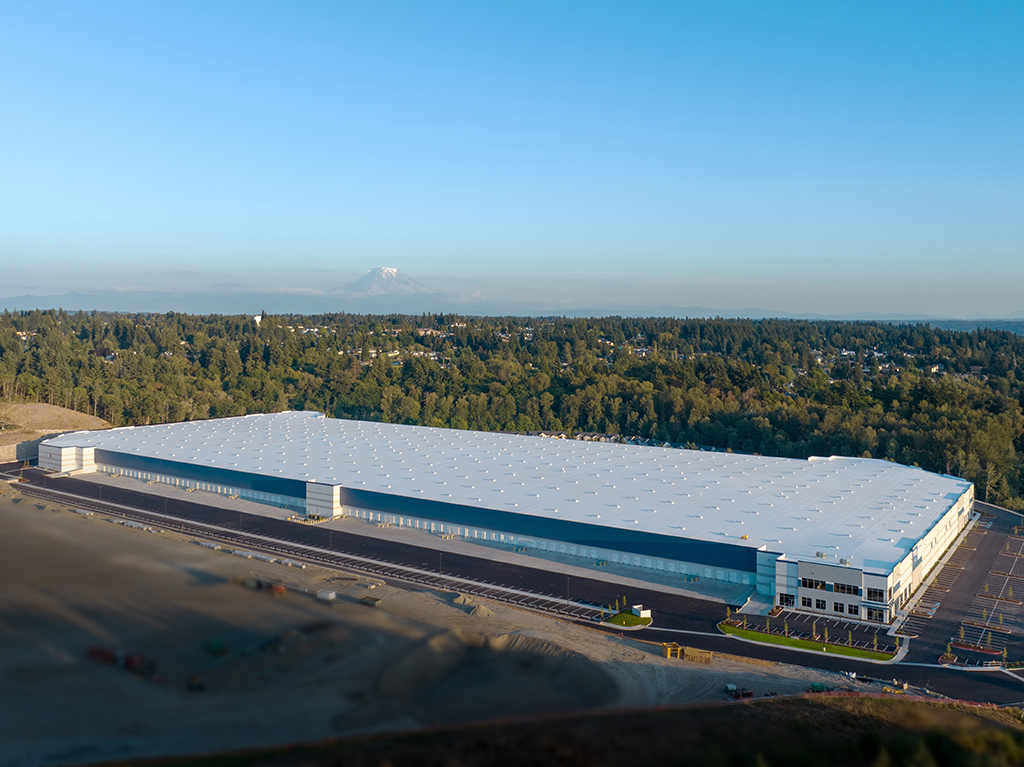

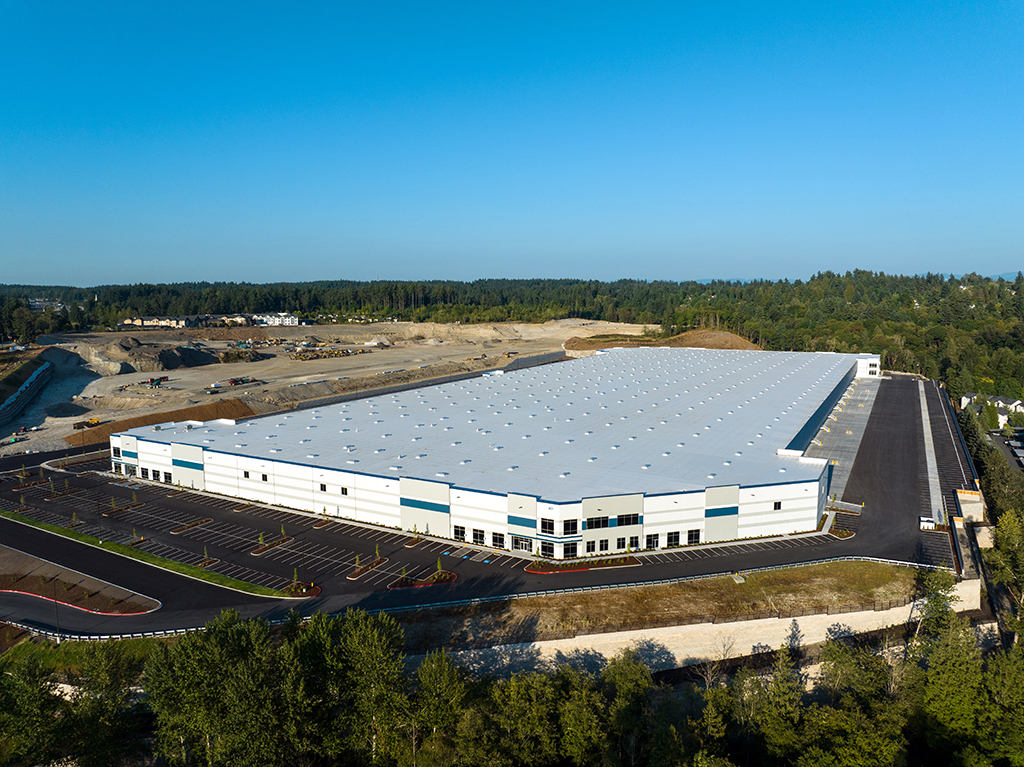

The 1,023,692 square foot speculative building has a 40' clear height, double loaded dock configuration with 150 dock-high and 4 grade-level doors, and over 75 trailer and 490 auto parking stalls. Building 1 was constructed with a total of 198 panels. The tallest panel was just under 49' tall, while the heaviest rang in at 167,000lbs.

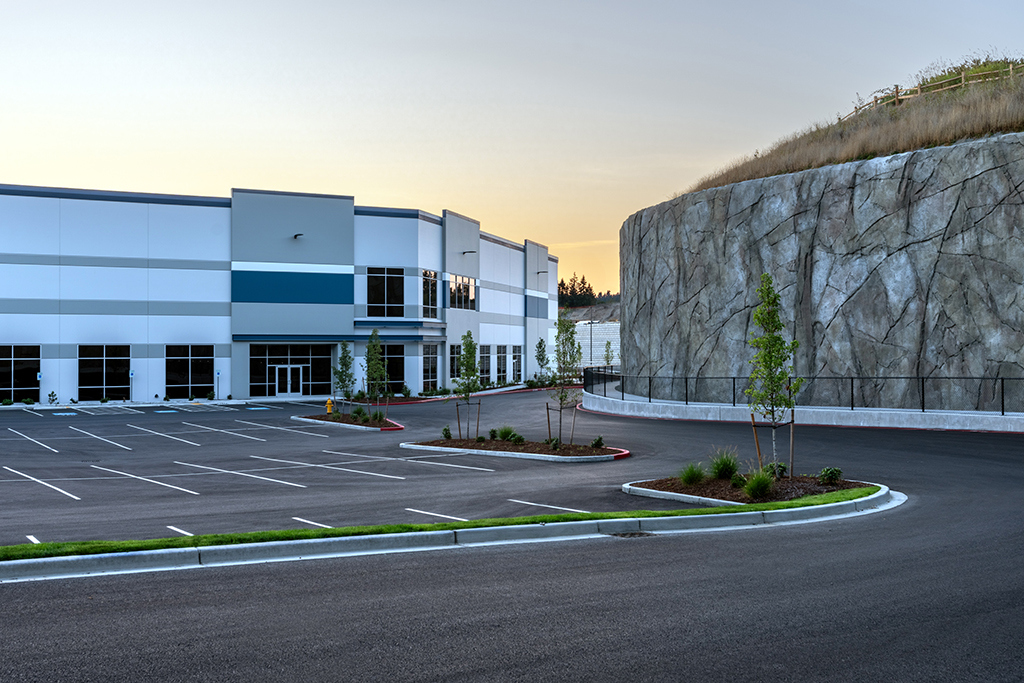

Sitework began in early 2022 to prepare the 117 acre site, which was previously Lloyd Enterprises, Inc's material pit for the last 30 years. The slope of the site involved constructing over 82,000 square feet of MSE and 18,500 square foot soil nail retaining walls. Stormwater for the site is managed with a 18,000,000 gallon stormwater storage vault. This first phase was completed in July, 2023.

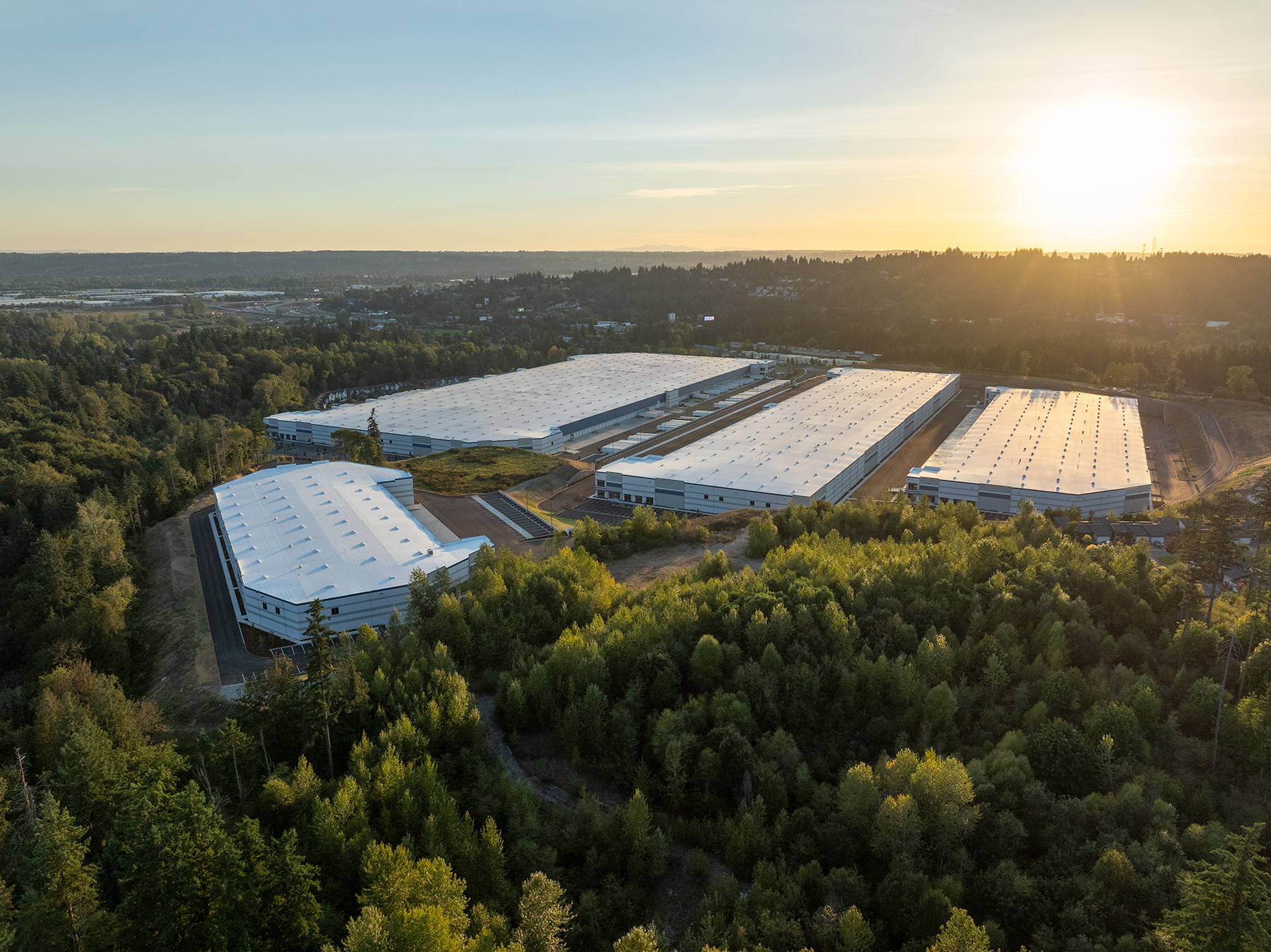

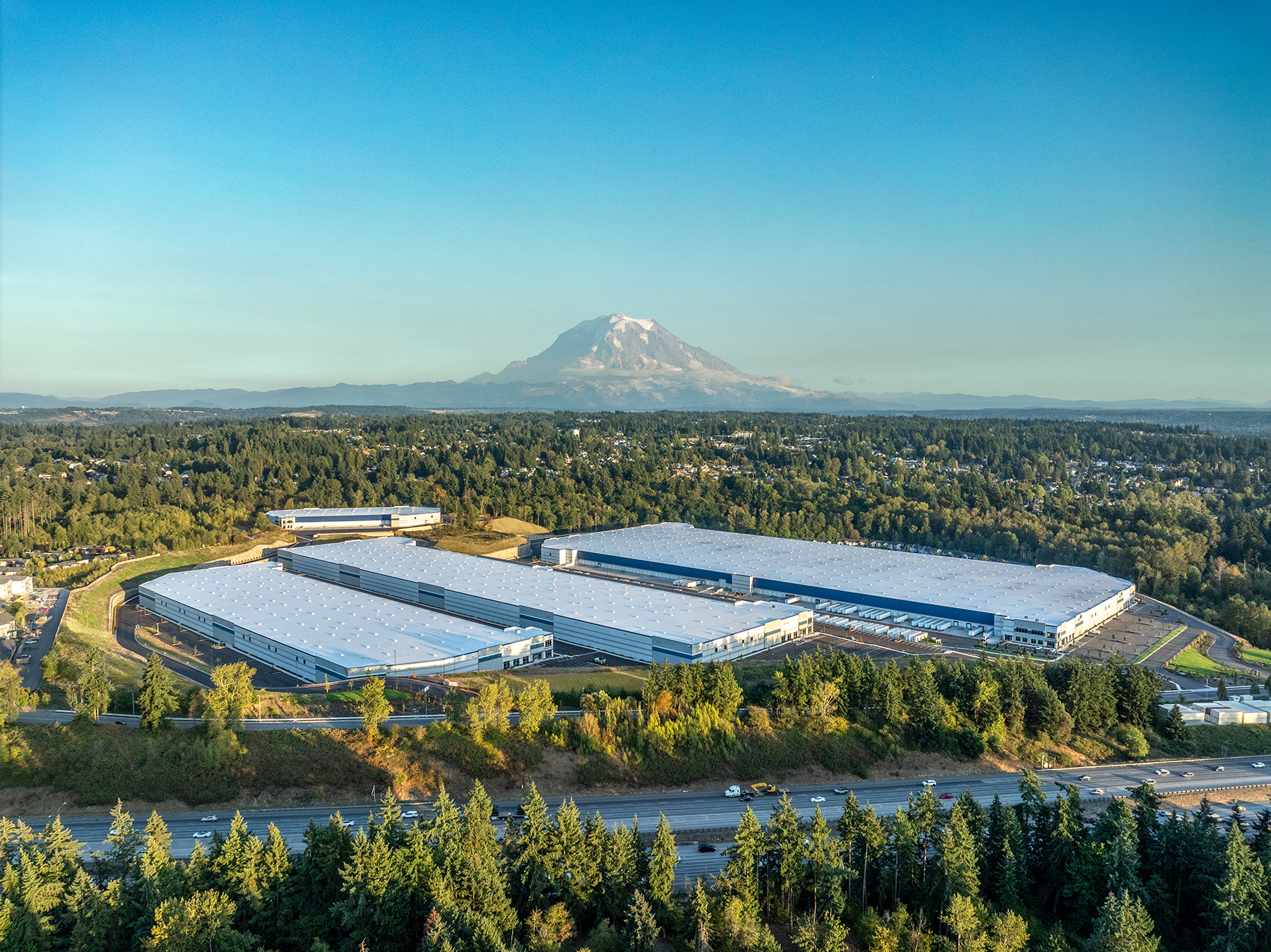

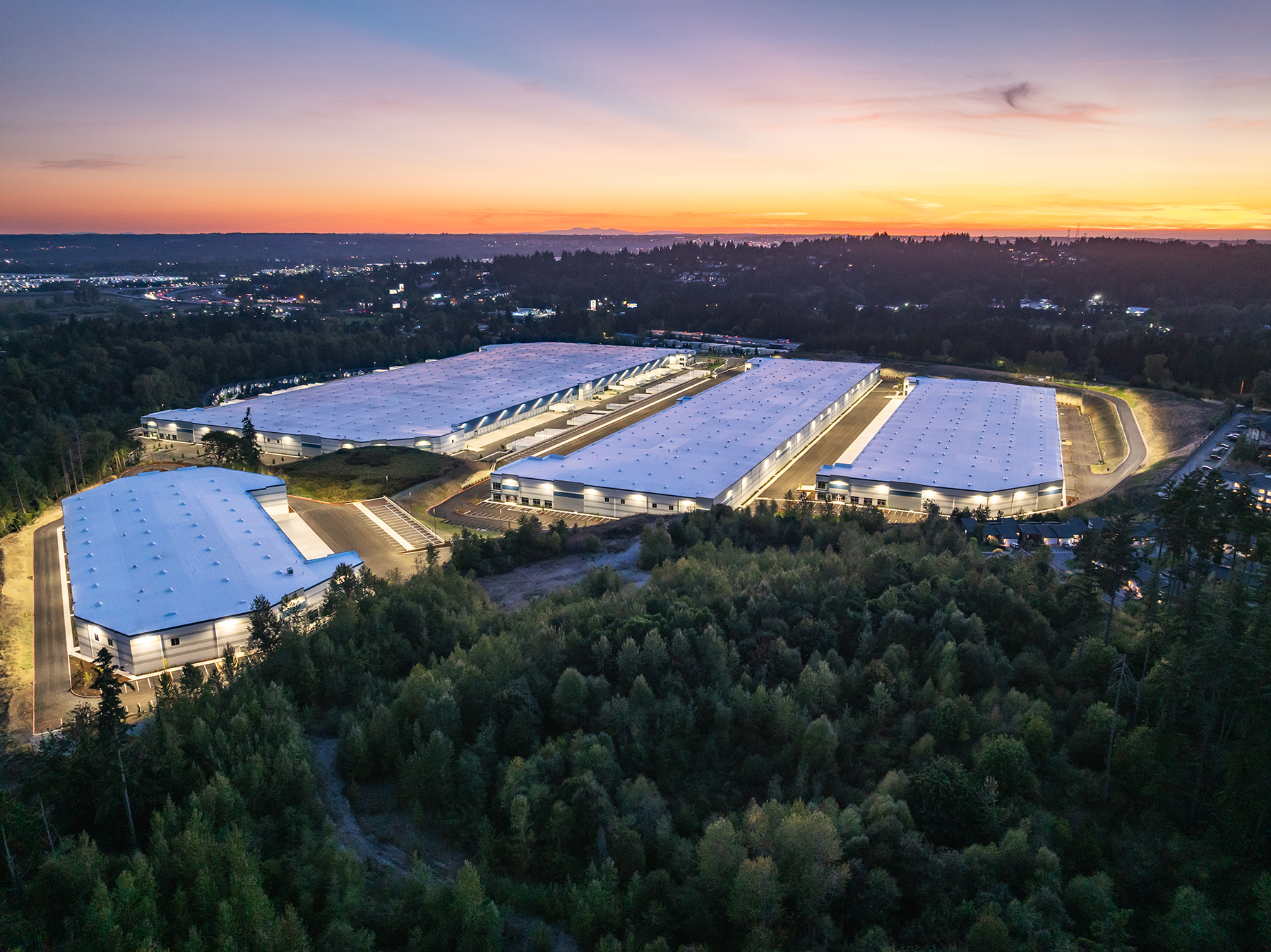

Phase 2 of Bridge Point I-5 began in August of 2023 and included the speculative construction of three additional buildings on 62 acres of the total 117 acre site.
• Building 2: 461,277 square feet with 40’ clear
• Building 3: 330,449 square feet with 36’ clear
• Building 4: 124,799 square feet with 34’ clear
The building layout on the site of Phase 2 also required 56,000 square feet of additional soil nail and 35,000 square feet of MSE retaining walls. This phase was completed in August, 2025.
